Cross Point Xperience Platform

Xperience the Future
XSENSE AM45 RFID

The XSENSE AM45 represents the next generation of retail security. Combining proven Acousto-Magnetic detection with integrated RFID capability, it delivers a modern approach to protecting merchandise while providing valuable store insights.

Connected through the Cross Point Xperience platform, the system allows retailers to monitor, manage and optimise entrance performance through a central dashboard or mobile app.

Detection range up to 2.7 m for wider store entrances
Integrated infra-red visitor counting
Multi-colour alarm lights for clear visual alerts
Integrated jammer detection
Optional metal detection and doorbell functions
Remote monitoring and service via Xperience portal & app
Available as transceiver or receiver configurations
Modern design available in Dawn and Night finishes
Cross Point XSENSE AM45

Xsense AM45 RFID

The XSENSE AM45 combines fashionable premium design with industry-leading AM detection performance. Its slim architectural profile integrates naturally into modern retail entrances while delivering exceptional protection.

The Xsense delivers an impressive detection coverage of up to 2.7 metres — the largest detection distance currently available on the market, helping protect wider entrances without compromising store presentation.

Dawn Finish

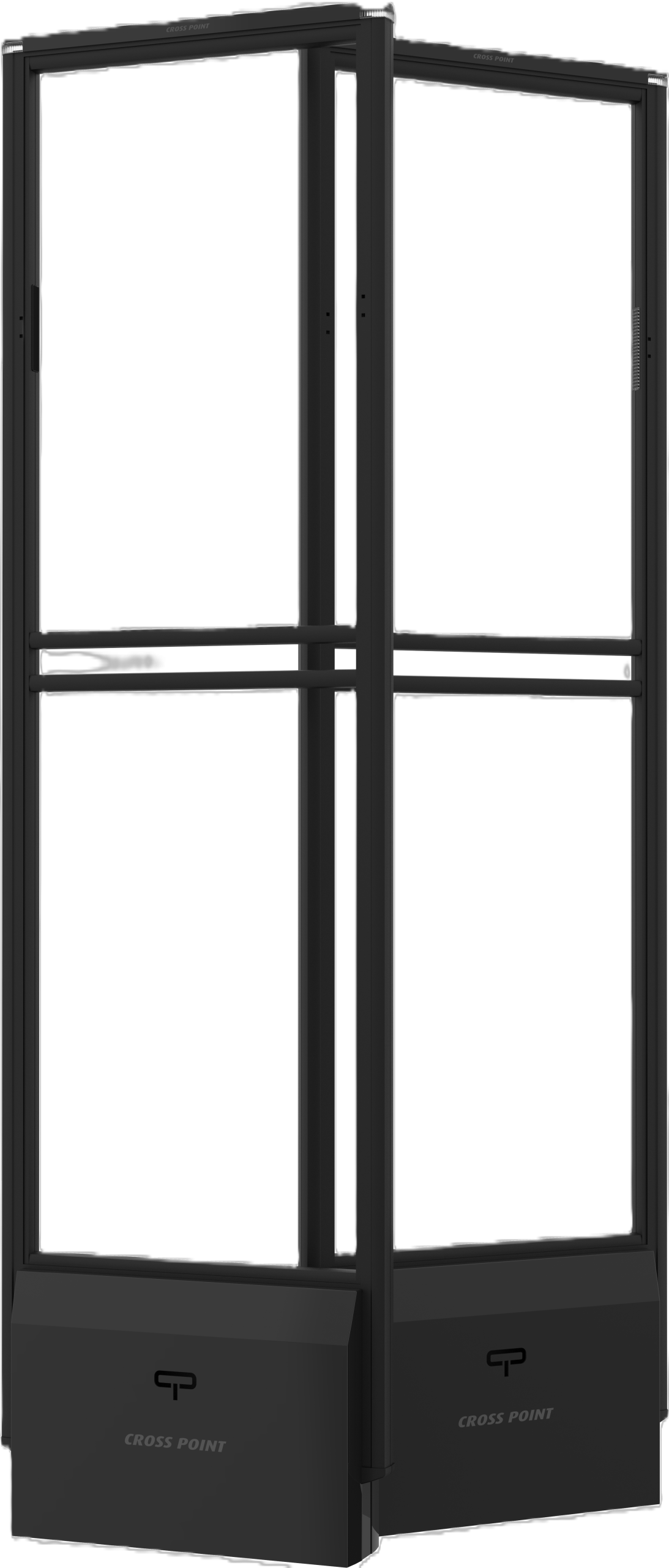

Night Finish

Technical Specifications
  • Antenna Width: 463 mm
  • Antenna Height: 1667 mm
  • Antenna Depth: 37 mm
  • Antenna Weight: 6.2 kg
  • Base Unit Width: 407 mm
  • Base Unit Height: 289 mm
  • Base Unit Depth: 97 mm
  • Power Supply: 115 / 230 VAC 50-60Hz
  • Output: 32.5VDC + sync
  • Operating Frequency: 58 kHz
  • Transmit Burst: Transceiver to receiver
  • Operating Temperature: 0°C to 50°C
  • Humidity: 0–90% non-condensing
  • I/O: 1
  • Relay: 1
